- Compact-sized electrical foot switch ideal to turn on and off a device.
- Includes 8-ft cable with leads on end of cable.
- 15 A, 125 / 250 VAC, SPDT (wired normally open). Made in USA. Certified to UL and CSA standards.
- Rugged steel case with non-slip traction pad.
- Momentary action - Press and hold foot pedal to turn on, release foot to turn off.

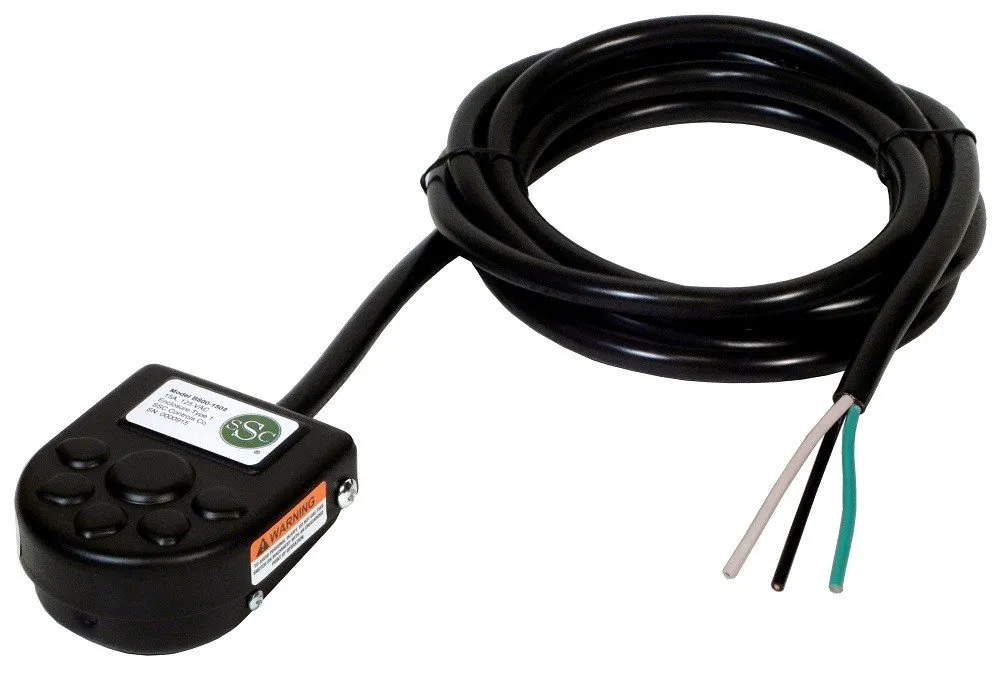

The B800-1502 foot switch offers a small footprint in a long-lasting switch that's perfect for any application requiring a smaller size. The unit features a compact steel housing designed to minimize the footprint and a traction pad on the base. Features a 15-amp, 125/250 VAC-rated switch with an 8-foot cable and 3 leads to be connected to your device: one ground, one common, and one wired normally open. This is a momentary foot switch, which means that it turns your product on when your foot is on the pedal, and turns it off when you release your foot from the pedal. You will have to hard-wire this to your equipment, so consult an electrical or knowledgeable person for proper wiring advice if needed (or see B850-1501 for the 3-pronged piggyback plug version). Enclosure rating: UL/CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Size: 3.0" L x 2.6" W x 1.2" H; 0.5 pounds without cable. Replaces 491-SC36. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 3.1 x 2.6 x 1.2 inches; 1.58 Pounds
- Date First Available : November 10, 2015
- Manufacturer : SSC Controls
- Country of Origin : USA
