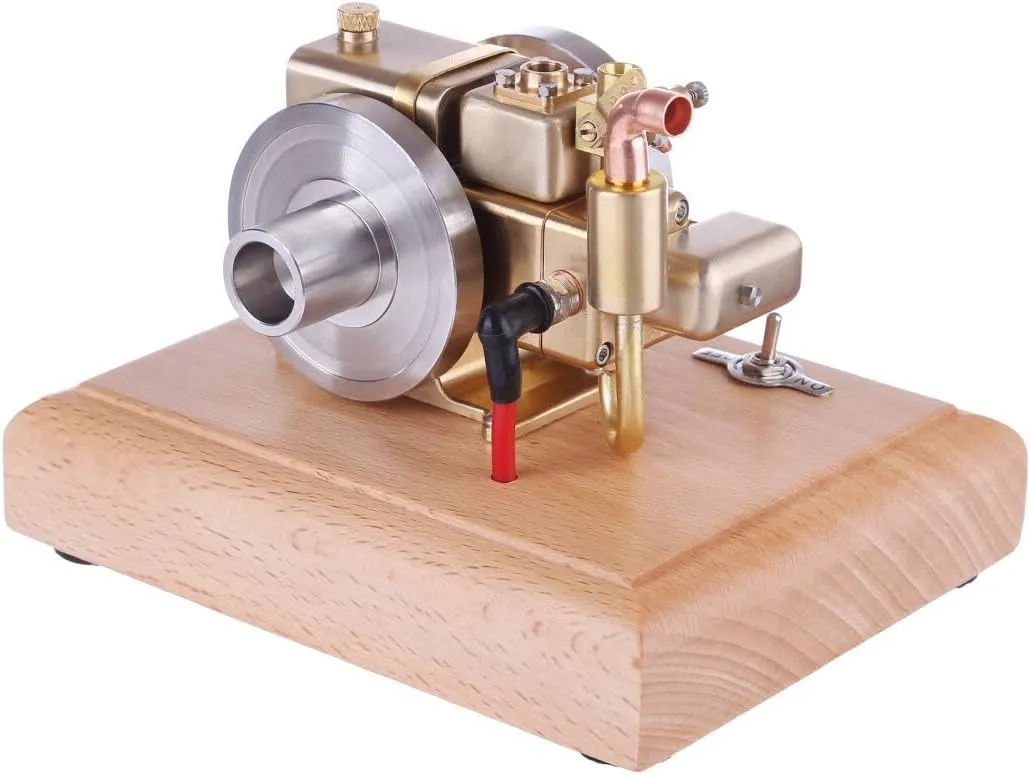

- ✅ 【Simulation Water-Cooled Four-stroke Engine Kit that Works 】-- Product Size: 15 x 12 x 10.8cm / 6x 5 x 4.2 inch. Cylinder diameter: 1.3cm. Stroke: 1.2cm. Displacement: 1.6CC.
- ✅【 Authentic Reproduction 】-- This is a mini engine. Made of brass and stainless steel. Water-cooled cooling structure is stable. Equipped with wooden base for operating and placing conveniently. You will love this exquisite mini engine
- ✅【 Adjustable Carburetor】-- The engine features a carburetor with adjustable speed, allowing for precise control of the engines performance. The ignition is powered by a 1.5V power supply
- ✅【 Two Starting Methods 】-- The mini model engine can be started in two ways: external force (electric drill) or manual starting. It runs on 95 gasoline, making it easy to operate. The mini model engine runs easily.
- ✅【 Ready to Run 】-- The mini model engine runs easily. It can be used as an intuitive view of how the engine works, as a desktop model to play with, and a great personal gift for model enthusiasts
Engine Startup Steps
.1. Check the wiring of the engine from the wooden base, then connect the fuel tank pipeline, and install AA battery (1.5v).
.2. Fill the tank with 95 gasoline. After the filling is completed, turn the flywheel clockwise on the right side of the engine (power switch surface) for many turns. No air can be generated.
.3. Turn on the power switch and quickly rotate the flywheel clockwise on the right side of the engine (power switch surface) to start the engine.
Precautions:
.1. If the ignition device is normal and the cylinder compression is normal, if the machine cannot start normally, it is very likely that the carburetor oil needle needs to be adjusted.
.2. After tightening the main oil needle on the carburetor, loosen 1/4 turn and start the flywheel, so that the mixing ratio of gasoline and air can reach the normal working ratio.
.3. When the machine stops, the power switch should be turned off.
Specifications:
.Material: Brass Stainless Steel Wood
.Displacement: 1.6CC
.Cylinder Diameter: 13mm
.Stroke: 12mm
.Wooden Base: 150 x 120 x 30mm
.Engine: 104 x 94 x 78mm
.Product Size: 15 x 12 x 10.8cm
.Product Weight: 1400g
.Package Dimensions: 20 x 20 x 15cm
.Package Weight: 1500g
.Packing: Box
Package Including
.1Set x Engine Model
