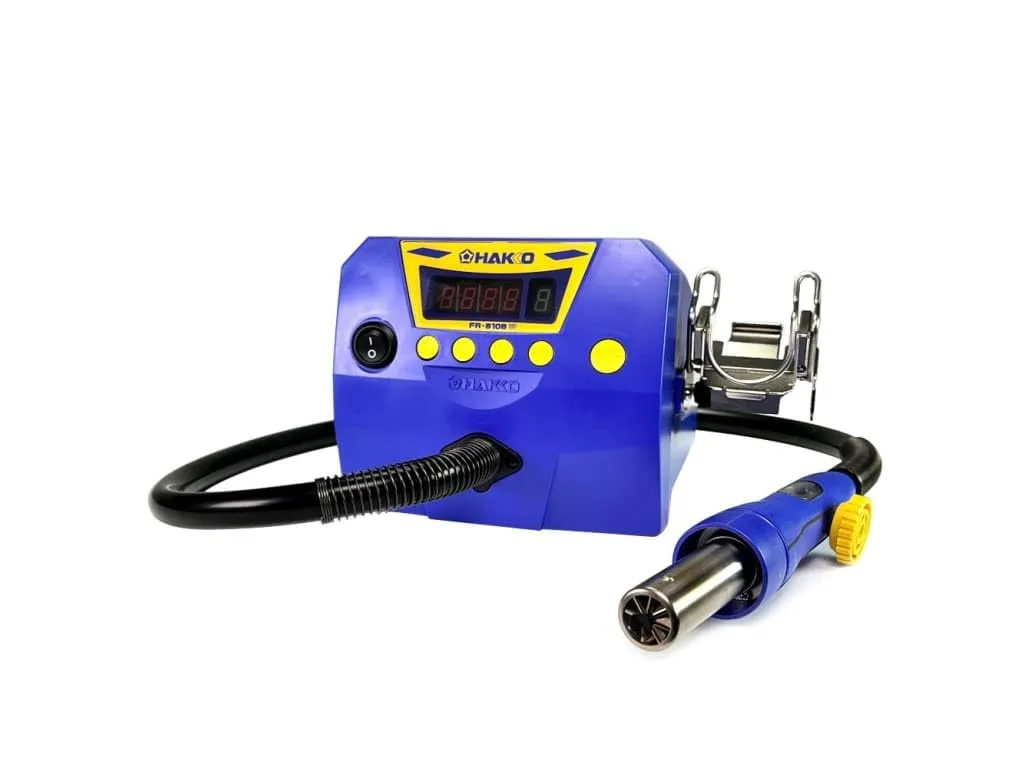

SMD Hot Air Rework Station Hakko FR810B-05 The HAKKO FR-810B Hot Air Rework Station sets a new bar for convective rework. The new, compact and lightweight design (only 3.3 lb.) features a quiet, self-contained turbine air supply, capable of delivering up to 115 L/min.. The new heating element design improves durability, provides a top end temperature of 1120Degree F (600Degree C) and eliminates the quartz glass insulator tube. The FR-810B includes an integrated vacuum pickup system that includes a visual indicator for reflow, allowing the operator to visually see when the component has completely reflowed and is safely lifted from the PCB. This special feature allows the operator to lift the hand piece without fear of damaging the pads or leads. Hakko FR810B-05 SMD Hot Air Rework Station × Additionally, new N51 Series quick-change hot air nozzles for SMT components that are specifically designed for use with the new vacuum pickup system are also available. These newly designed nozzles are compatible with the HAKKO FR-810B and FR-810, and the older nozzles from the HAKKO FR-810, FR-803B, FR-802 and FR-801 hot air stations are also compatible with the FR-810B. The HAKKO FR-810B is ideal for removing SMDs and includes an integrated vacuum pickup system with a special visual indicator in the hand piece that allows the operator to visually see when the component has completely reflowed and is safely lifted from the pad. Note: Please be careful when using older HAKKO N51 Series nozzles as some select nozzles are NOT compatible with the vacuum pick up feature and can cause damage to the unit if used improperly. Please see Product Bulletin 380 (PB380) Change to N51 Series Nozzles and the FR-810B User Manual, section 4 for more information.

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 15.5 x 11.7 x 9 inches; 6.4 Pounds
• Date First Available ‏ : ‎ August 10, 2016
• Manufacturer ‏ : ‎ Hakko
• Country of Origin ‏ : ‎ Japan
